- Brand Name: OCDAY
- Origin: Mainland China
- Certification: NONE
- Color: black
- AC voltage resolution: 100mV/1V
- Battery test: 1.5V/9V
- Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ
- Zero adjustment: auto
- Size: 98 x 48 x 18mm
- Weight: 51g

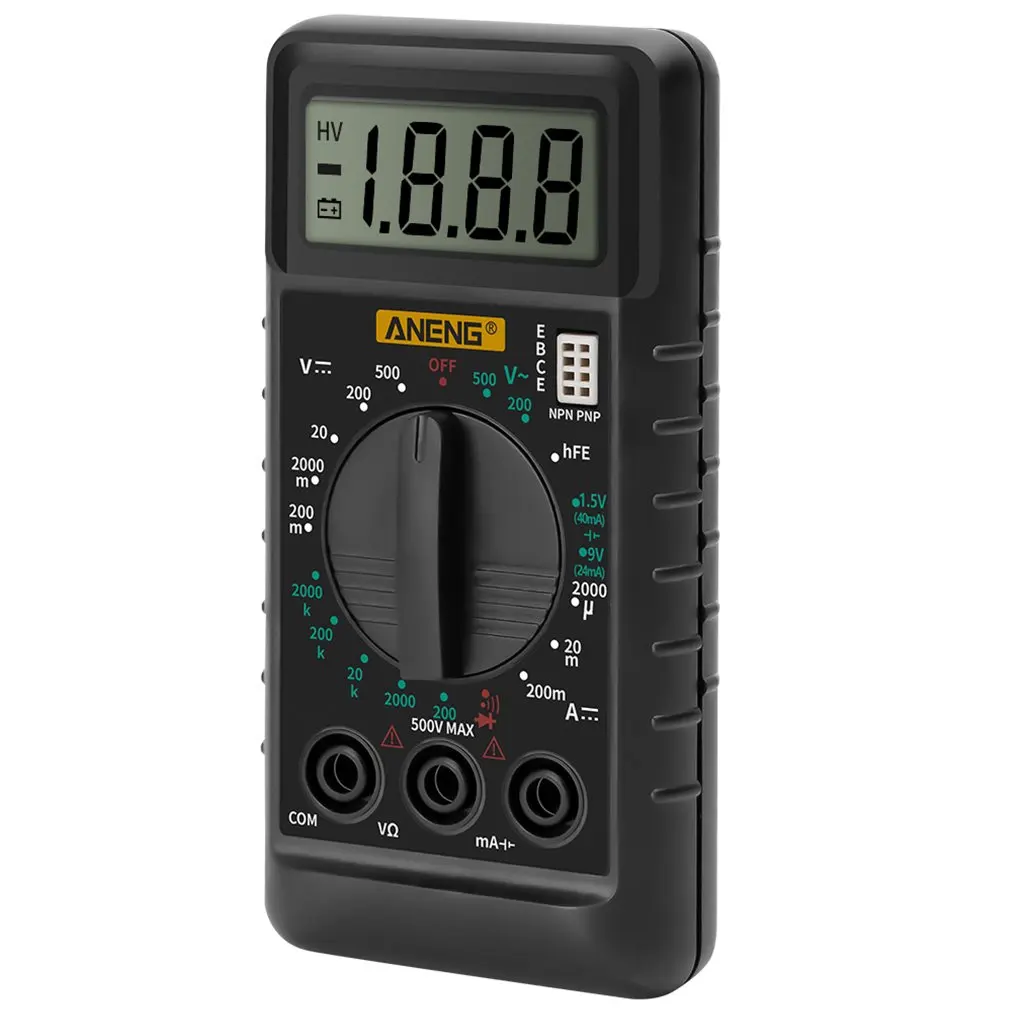

DT-182 Digital Mini Multimeter DC/AC Voltage Current Meter Handheld Pocket Voltmeter Ammeter Diode Triode Tester Multitester
Features:
1.Multifunctional, can measure AC/DC voltage, DC current, resistance, diode, triode, continuity,battery test.
2.Pocket and ergonomic design,easy to use and carry.
3.Easy to read: 3 1/2 digits LCD with a max reading of 1999.
4.Low power consumption:auto negative polarity indication,low power indication.
5.More advantages:battery test,triode test,diode test.
Description:
1.Portable design: Small and can be put into pocket,easy to carry.
2.Multifunctional, can measure AC/DC voltage, DC current, resistance, diode, triode, continuity,battery test.
3.It’s a perfect tool for the laboratory, factory and home.
Specification:

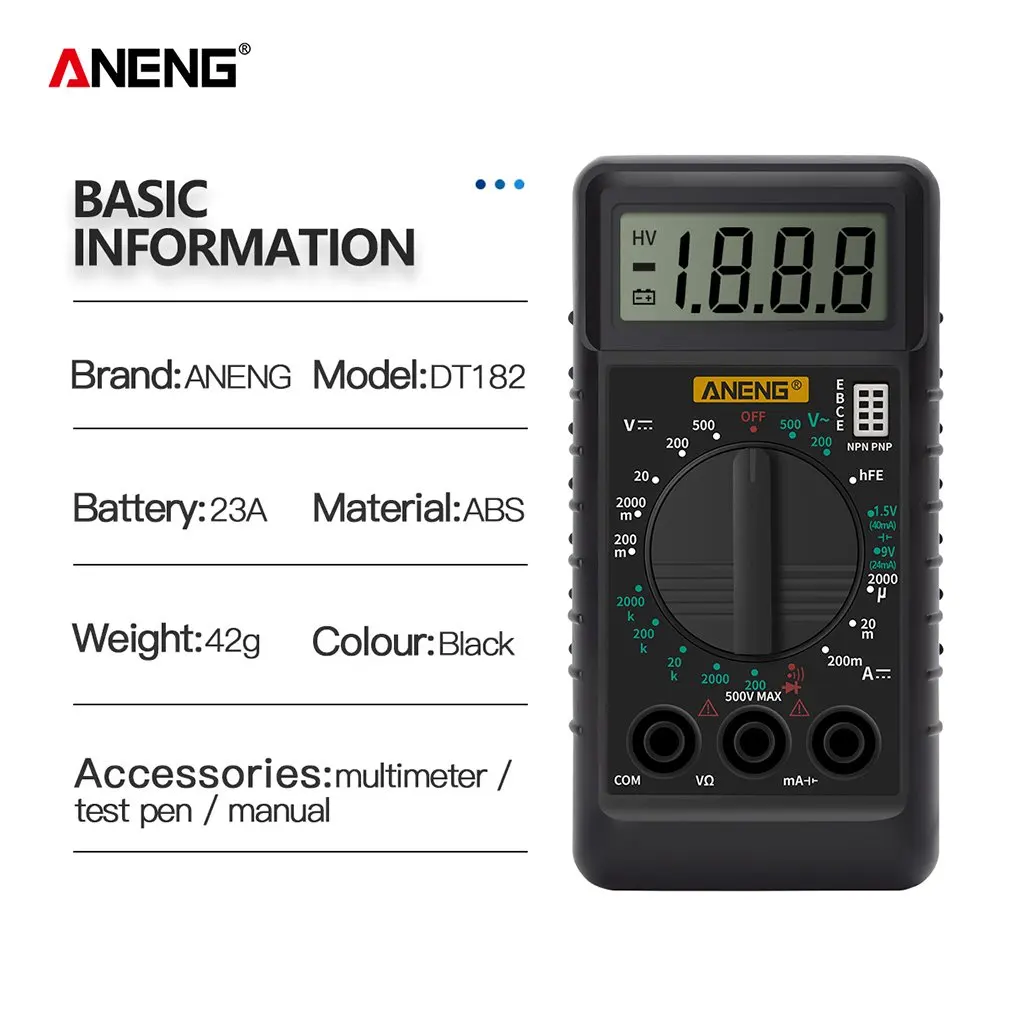

Model: DT-182
Color: black
Display:3 1/2 digits LCD with a max reading of 1999
Battery: 12V 240mAh(built-in)
DC voltage:
200mV/2V/20/200V ±(0.8%+1)
500V ±(1%+1)
DC voltage resolution: 0.1mV/1mV/10mV/100mV/1V

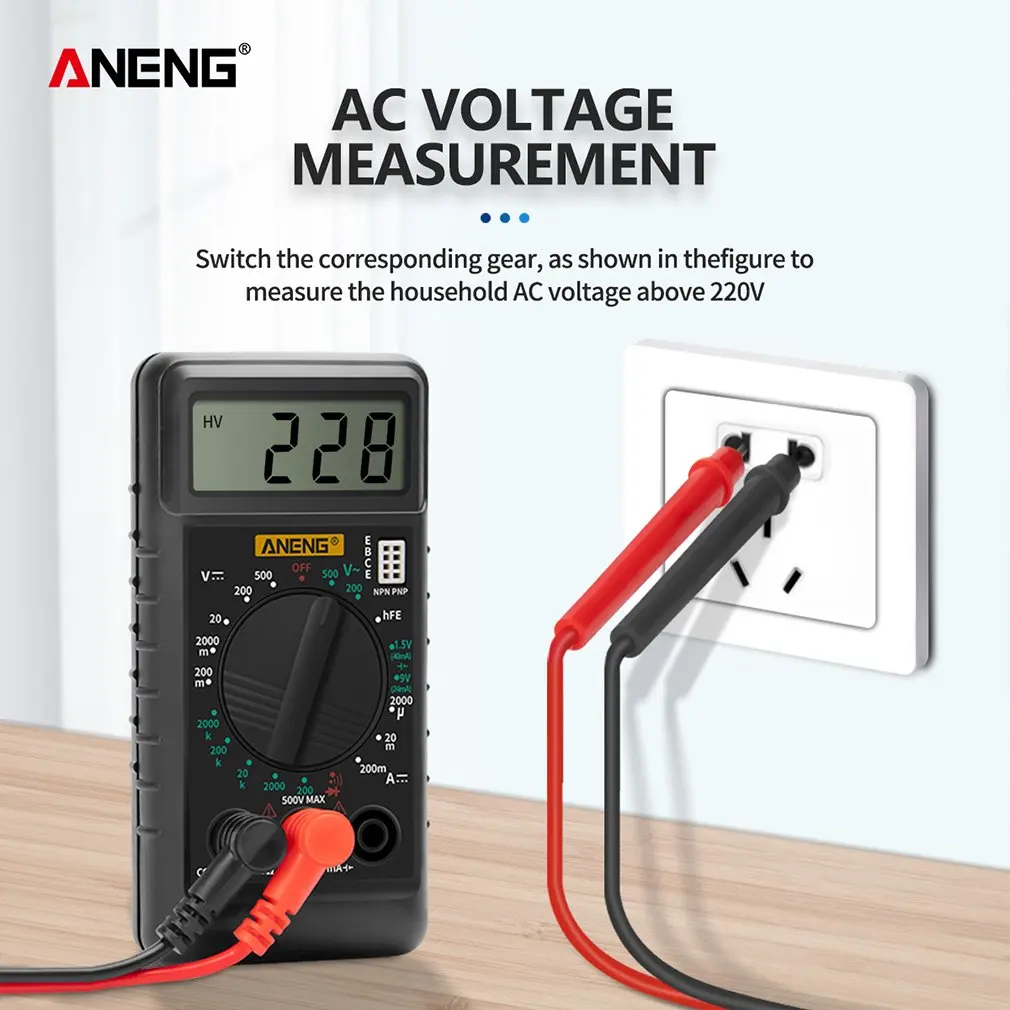

AC voltage range:
200/500V ±(1.5%+10)
AC voltage resolution: 100mV/1V
DC current:
200uA/2mA ±(1%+2)
20mA/200mA ±(1.2%+2)
10A ±(2%+2)
DC current resolution: 0.1μA/1μA/10μA/100mA/10mA

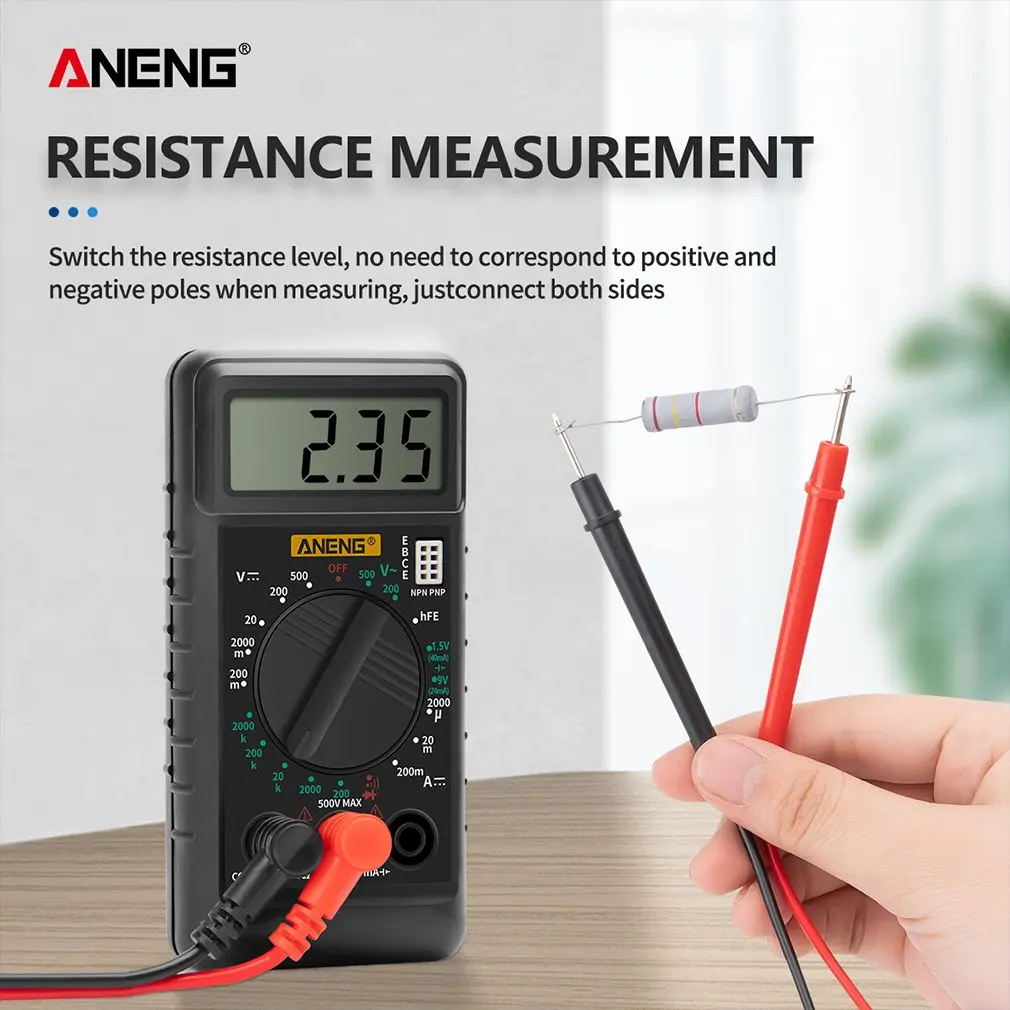

Resistance:
200/2k/20k/200k/2000k ±(1%+3)
Resistance resolution: 0.1/1/10/100/1k
Battery test:1.5V/9V
Zero adjustment:auto
Diode test:yes
Triode test:yes
Continuity test:yes
Low voltage display: yes
Over range indication:yes
Auto negative polarity indication:yes

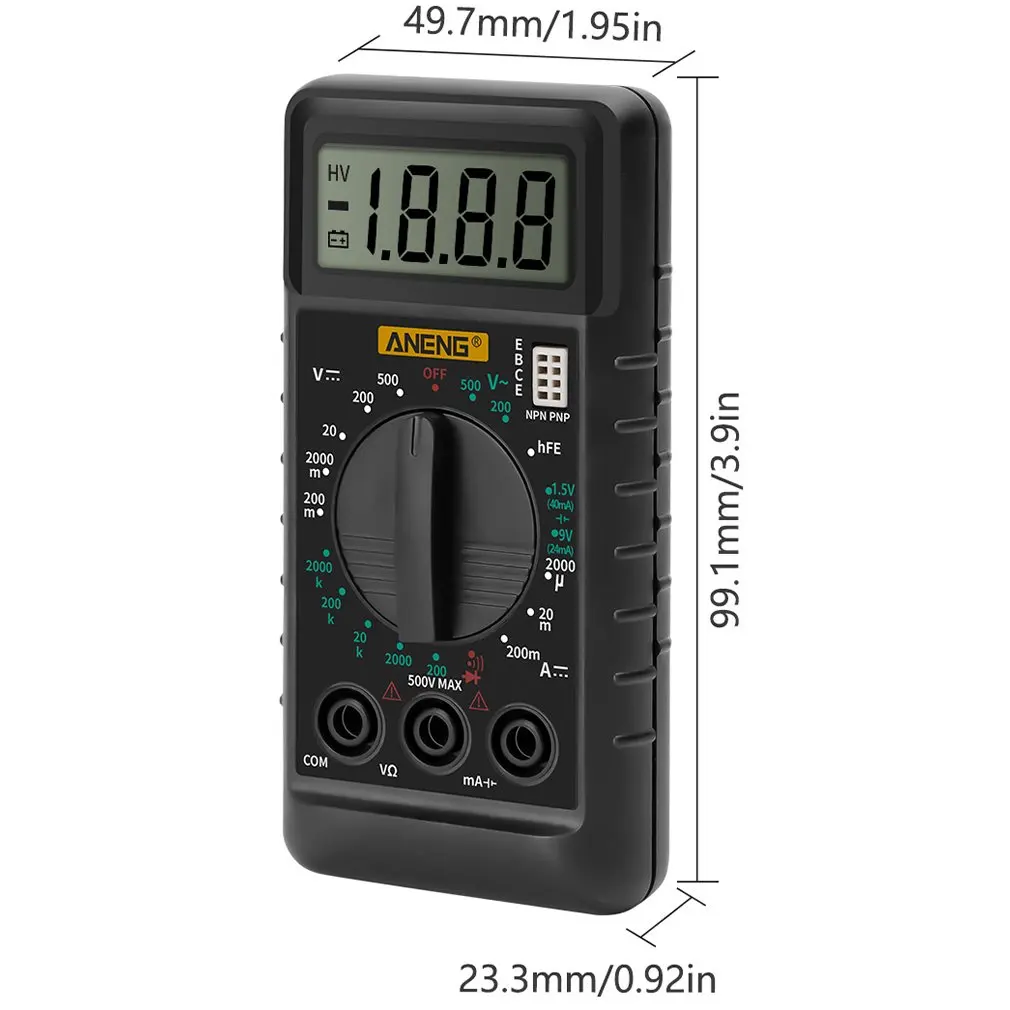

Size: 98 x 48 x 18mm
Weight: 51g
Package information:
Package size: 184 x 103 x 25mm/7.24 x 4.06 x 0.98in
Package weight: 93g/3.28oz
Blister Package

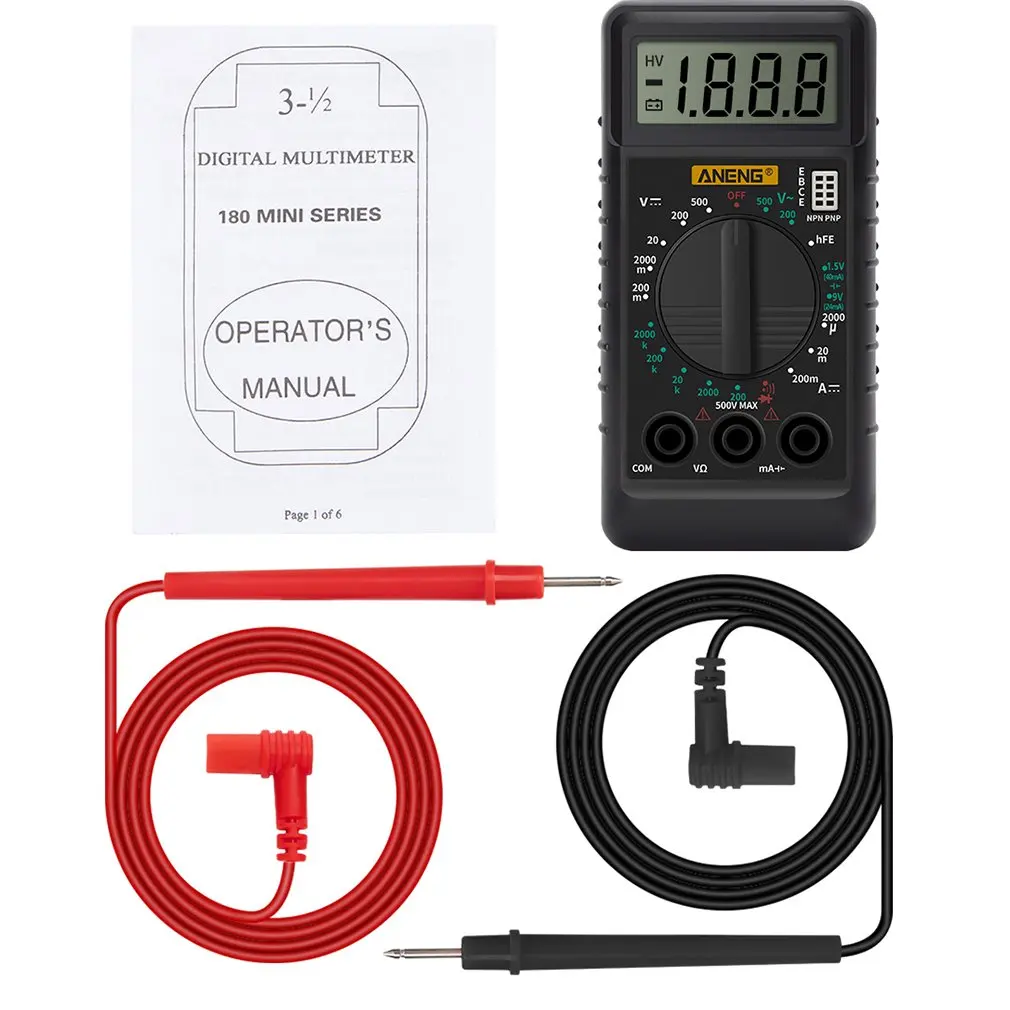

Package Included:
1 x Digital Multimeter
1 x Pair of test leads
1 x User Manual
